U BOLT

Online consultation

PRODUCT DETAILS


说明：表中“规格”一列中“6x133”，“6”指丝径“133”表示“管径”。其中“管径”表示被固定管子的外径。单位：mm
M6系列

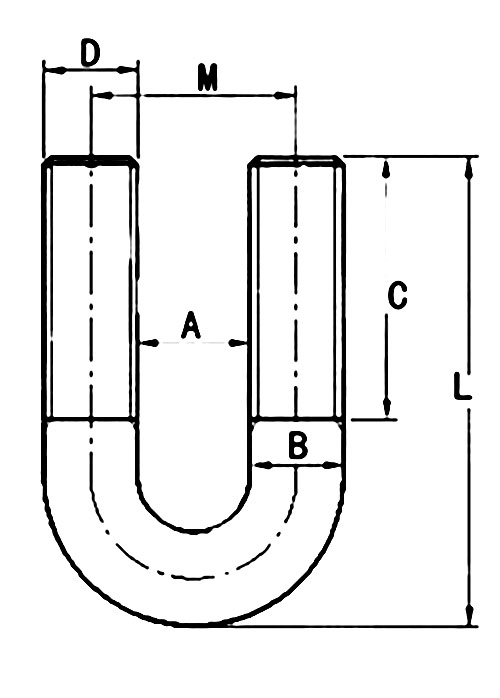

规格	A管径	B光杆	C牙长	D直径	M中心距	L高度
M6*8	9	5.3	12	6	15	25
M6*10	11	5.3	13	6	17	27
M6*12	13	5.3	14	6	19	29
M6*14	15	5.3	15	6	21	32
M6*16	17	5.3	15	6	23	34
M6*18	20	5.3	18	6	26	36
M6*22	24	5.3	22	6	30	42
M6*25	27	5.3	22	6	33	45
M6*27	29	5.3	25	6	35	47
M6*33	35	5.3	25	6	41	53
M6*38	40	5.3	28	6	46	58
M6*42	44	5.3	28	6	50	62
M6*45	47	5.3	30	6	53	65
M6*48	50	5.3	30	6	56	68
M6*51	53	5.3	30	6	59	71
M6*57	59	5.3	30	6	65	77
M6*60	62	5.3	30	6	68	80
M6*63	65	5.3	30	6	71	83
M6*76	78	5.3	35	6	84	96
M6*89	91	5.3	35	6	97	109
M6*102	104	5.3	35	6	110	122
M6*108	110	5.3	35	6	116	128
M6*114	116	5.3	35	6	122	134
M6*133	135	5.3	35	6	141	153
M8系列
规格	A管径	B光杆	C牙长	D直径	M中心距	L高度
M8*22	24	7.1	25	8	32	49
M8*25	27	7.1	25	8	35	52
M8*27	29	7.1	28	8	37	54
M8*33	35	7.1	28	8	43	60
M8*38	40	7.1	30	8	48	65
M8*42	44	7.1	30	8	52	69
M8*45	47	7.1	30	8	55	72
M8*48	50	7.1	30	8	58	73
M8*51	53	7.1	30	8	61	78
M8*57	59	7.1	30	8	67	84
M8*60	62	7.1	30	8	70	87
M8*63	65	7.1	30	8	73	90
M8*76	78	7.1	30	8	86	103
M8*89	91	7.1	30	8	99	116
M8*102	104	7.1	40	8	112	129
M8*108	110	7.1	40	8	118	135
M8*114	116	7.1	40	8	124	141
M8*133	135	7.1	45	8	143	160
M8*140	142	7.1	45	8	150	167
M8*159	161	7.1	50	8	169	189
M8*168	170	7.1	50	8	178	198
M8*219	221	7.1	55	8	229	253
M8*273	275	7.1	55	8	283	313
M10系列
规格	A管径	B光杆	C牙长	D直径	M中心距	L高度
M10*22	24	8.9	28	10	34	53
M10*25	27	8.9	28	10	37	56
M10*27	29	8.9	28	10	39	58
M10*33	35	8.9	28	10	45	64
M10*38	42	8.9	30	10	50	69
M10*42	44	8.9	30	10	54	73
M10*45	47	8.9	30	10	57	76
M10*48	50	8.9	35	10	60	82
M10*51	53	8.9	35	10	63.	85
M10*57	59	8.9	35	10	69	91
M10*60	62	8.9	35	10	72	94
M10*63	65	8.9	35	10	75	97
M10*76	78	8.9	40	10	88	110
M10*89	91	8.9	40	10	101	123
M10*102	104	8.9	40	10	114	136
M10*108	110	8.9	40	10	120	142
M10*114	116	8.9	45	10	126	148
M10*133	135	8.9	45	10	145	167
M10*140	142	8.9	45	10	152	174
M10*159	161	8.9	50	10	171	193
M10*168	170	8.9	50	10	180	202
M10*219	221	8.9	55	10	231	263
M10*273	275	8.9	65	10	285	322
M10*325	327	8.9	65	10	337	378
M10*377	379	8.9	65	10	389	432
M12系列
规格	A管径	B光杆	C牙长	D直径	M中心距	L高度
M12*42	44	10.8	35	12	56	78
M12*45	47	10.8	35	12	59	81
M12*48	50	10.8	35	12	62	84
M12*51	53	10.8	35	12	65	87
M12*57	59	10.8	35	12	71	93
M12*60	62	10.8	35	12	74	96
M12*63	65	10.8	35	12	77	99
M12*76	78	10.8	40	12	90	114
M12*89	91	10.8	40	12	103	127
M12*102	104	10.8	40	12	116	140
M12*108	110	10.8	40	12	122	146
M12*114	116	10.8	40	12	128	152
M12*133	135	10.8	40	12	147	171
M12*140	142	10.8	40	12	154	178
M12*159	161	10.8	55	12	173	200
M12*168	170	10.8	55	12	182	209
M12*219	221	10.8	55	12	233	260
M12*273	275	10.8	55	12	287	314
M12*325	327	10.8	55	12	339	366
M12*377	379	10.8	60	12	391	420
M12*426	428	10.8	60	12	440	472

公称通径DN		10	15	20	25	32	40	50	65	80	100
英制		1/4″	1/2″	3/4″	1″	1-1/4″	1-1/2″	2″	2-1/2″	3″	4″
钢管	A	17.2	21.3	26.9	33.7	42.7	48.3	60.3	76.1	88.9	114.3
外径	B	14	18	25	32	38	45	27	76	89	108
公称通径DN		125	150	200	250	300	350	400	450	500	600
英制		5″	6″	8″	10″	12″	14″	16″	18″	20″	24″
钢管	A	139.7	168.3	219.1	273	323.9	355.4	406.4	457	508	610
外径	B	133	159	219	273	325	377	426	480	530	630
本表适用的钢管外径包括A·B两个系列，A系列为国际通用系列(俗称英制管) B系列为国内沿用系列(俗称公制管)，其他公称通径DN和管外径按照本表规定

1.Standard: DIN3570, JIS B 2809-1977 , JB/ZQ 4321-2006,or according the drawing

2. Material: SS304, SS316.

3. Size: M6-M30 .

4. Finish: Bright .

5. Surface treatment: Passivated

6. Certification : ISO9001:2008

7. Payment Terms : T/T

8. Head type: T type head.

9. Thread type: Coarse thread, fine thread.

10. Length: 10mm-500mm.

11. Delivery time: Normally in 3-30 days.

12. Market : South&north America/Europe/East&South/east Asia/ Australia and Africa etc.

13. Package: Cartons & pallets or according to customer's requirement.

Note:We support standard part and also welcome customized.Please inform the exact specification of inquiry such as Material, Grade, Size etc.If it is special and non-standard products, please supply the drawing or Photos or Samples to us.

Our service:

1. OEM Manufacturing welcome: Product, Package for U bolt.

2. U bolt sample is free.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about our high quality T head bolt contact with us, we will offer the solve way for you.

•BY SEA : ( North America,South America) around 40 working days, Eastern Europe around 30-40 working days , Southeast Asia around 6-10 working days, Africa around 35-45 working days, (India, Pakistan ) around 40 working days,( South Korea, Japan) around 40 working days.
• BY AIR : Africa around 3-5 working days, Other places around 1-3 working days.

FAQ:

Q1.What is your main products?
A1:Our main products are fasteners: bolts, screws, rods, nuts, washers. Meantime, our company also produces non-standard stainless steel products according the drawing .

Q2. How to ensure that every process's quality?

A2:Every process will be checked by our quality inspection department which insures every product's quality. In the production of products, we will personally go to the factory to check the quality of products.
Q3.How long is your delivery time?
A3:It depends on if we have stock or not ,if we have the stock goods,we can delivery it within 3 days after receive the payment.And normally our production time is in 20 days for one container (20-26 tons) .
Q4. What is your payment method?
A4:30% value of T/T in advance and the balance 70% before delivery .
Q5.How is your quality ? And what if we don’t satisfied your quality ?
A5:We produce your order strictly by your request.If the quality was not acceptable,we will refund to you .

Q6.What about the warranty ?
A6:We are very confident in our products,and we pack them very well to make sure the goods in well protection.

To avoid any subsequent trouble regarding quality issue,we suggest you check the goods once you receive them.If there is any transport damaged or quality issue,don’t forget take the detail pictures and contact us as soon as possible,we will properly handle it to make sure your loss to reduce to the smallest .
Q7.Can you provide a sample?
A7:Sure, Our sample is provided free of charge, but not including courier fees.

Q8.Could you send me your catalog and price list ?
A8:As we have more than thousands of products,it is really too hard to send all of catalog and price list for you .Please inform us the style you interested,we can offer the price for your reference .
